LIECHTI

Turbomill

500g

liechti-TurboMILL-500-g-covered

Maximum dynamics. Minimum cycle time.

The LIECHTI Turbomill 500g is designed for the manufacturing of single high-precision blades for aerospace and power generation applications. Featuring g-technology and the unique Tool Pivot Point machining capability, the Turbomill 500g delivers blade accuracies of 0.015 mm and surface finishes of 0.4 µm at 2g acceleration with 60 m/min linear feed rates, reducing cycle times by up to 30%. For unattended production, the machine can be equipped with a bar feeder that automatically loads bar stock, ensuring non-stop production and a fast return on investment.

Wire-Cutting EDM

Highlights

Powerful yet compact, the Turbomill 500g provides high dynamics, stable machining at high speed and high accuracy. g-technology built into the CAM software ensures optimal process parameters apply around the entire airfoil for enhanced performance and flawless surface quality.

g-technology and 2g acceleration

The combination of the 20,000 rpm Step-Tec spindle, 2,000 rpm turning, 2g acceleration, and 60 m/min linear feed rate ensures the fastest possible cycle times without compromising accuracy or surface quality.

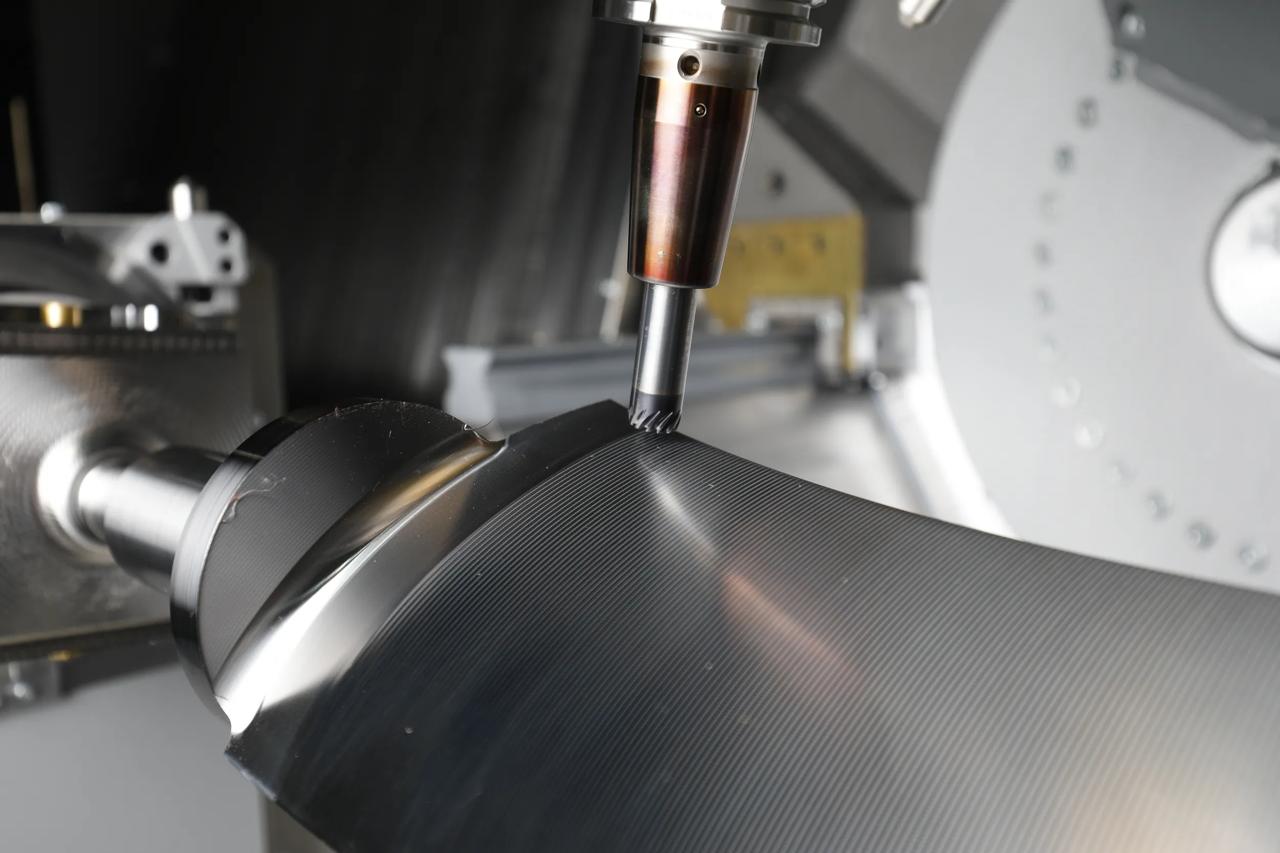

Tool Pivot Point machining

The 100 rpm Tool Pivot Point innovation on the B-axis ensures fast and accurate contouring around blade edges. Reduced movement of the linear axis delivers shorter cycle times, higher positional accuracy, and less mechanical wear.

Unattended bar feeder production

The Turbomill 500g can be equipped with an automatic bar feeder to speed up return on investment and productivity, enabling continuous unattended production with no manual intervention required.

Intelligent Thermal Compensation

All five axes are equipped with direct-drive motors and an internal bed cooling system that stabilizes machine temperature at the optimum level, ensuring consistent accuracy throughout long and dynamic milling processes.

Specifications

Einheiten

Turbomill 500g

Blade length max. incl. fixture
500 mm
Blade swing dia. max.
200 mm
Spindle
20’000 rpm, HSK-A63 (T-63)
Turning
1’000 / 2’000 rpm
Automation
Pallet handling, part handling, bar feeding
Tool changer
30 or 60 positions, HSK-A63
Quality inspection
Work & tool measuring
CAM
Liechti Turbosoft plus
ITC
Intelligent Thermal Compensation
