LIECHTI

g-Mill

850 / 1150 / 1350

g-MILL 1350

Precision that scales with your production

Designed for the most demanding blisk and airfoil applications, the g-Mill combines high-dynamic 5-axis machining with a rigid, compact design. Three model variants cover a blisk diameter range up to 1350 mm.

5-axis milling

Highlights

Purpose-built for high-dynamic blisk and airfoil machining, the g-Mill delivers 5-axis simultaneous cutting performance in titanium, Inconel, and nickel-based superalloys. Available in three working ranges to match your production requirements.

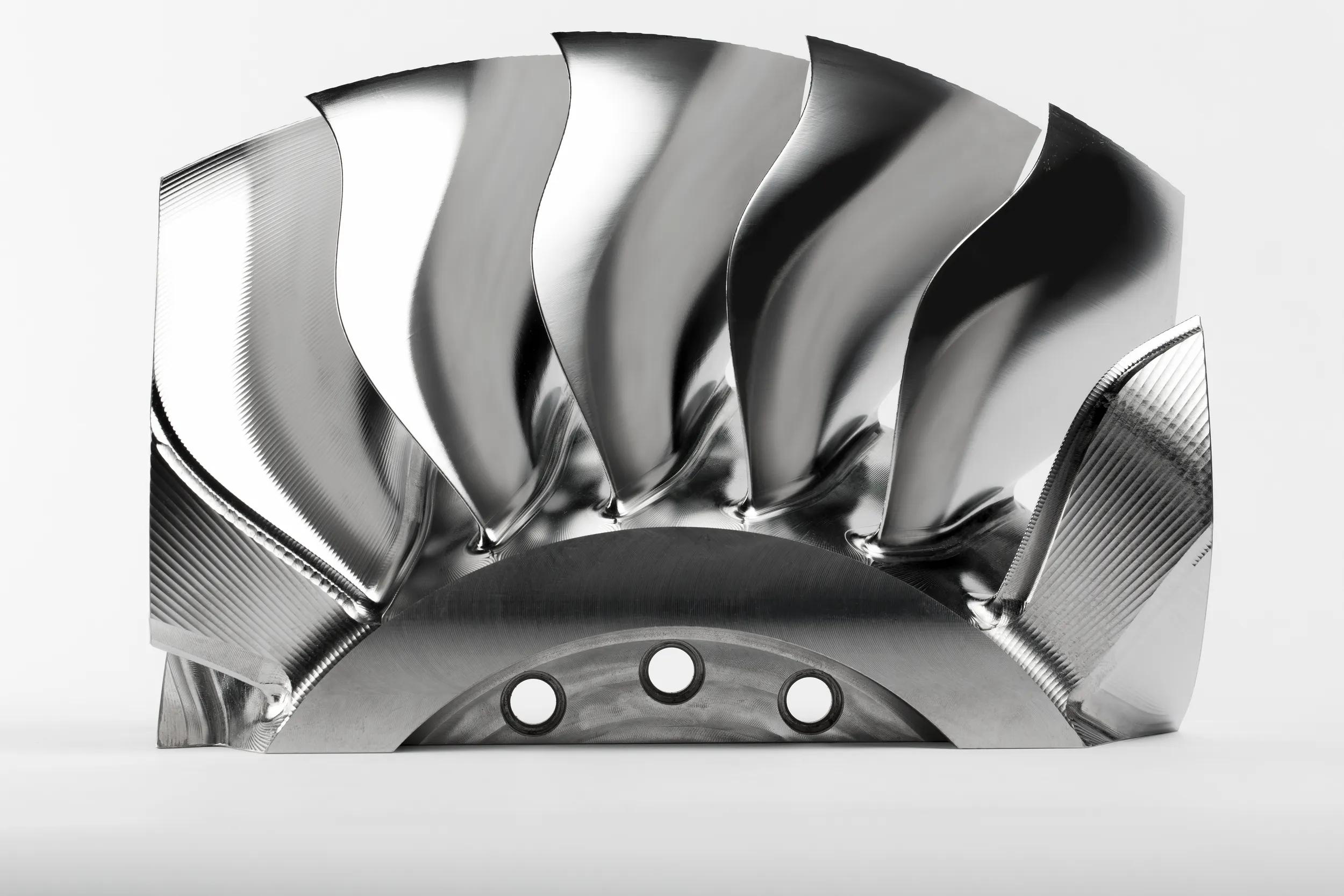

Complete blisk machining in one setup

Roughing, semi-finishing, and finishing of airfoil, hub, and shroud in a single setup, maximizing productivity and part consistency.

Ultra-dynamic machining

The rigid g-Mill machine design enables high-jerk 5-axis simultaneous cutting without vibration marks, delivering clean leading and trailing edge quality on every airfoil.

Adaptive machining of welded blisks

Integrated on-machine probing automatically compensates for dimensional variation in welded blisks, ensuring consistent accuracy and repeatability throughout the entire production run.

Three models, one platform

Available in 850 mm, 1150 mm, and 1350 mm blisk diameter variants, the g-Mill scales to your production requirements without compromising on performance or precision.

Specifications

Einheiten
Model

Main specifications

Blisk dia. max
850 mm
Spindle (S1)
18 000 rpm / 20 000 rpm, 166 Nm, 20 kW
Tool changer
50, 97 or 144 positions, HSK-A63 / A80
Quality inspection
Work & tool measuring
CAM
Liechti Turbosoft plus

Turbosoft PLUS

Mehr erfahren
Software

Turbosoft PLUS

The complete CAM solution for airfoil manufacturing
